Triple S Power 3 OR 4 Blade Tree Spade Skid Steer Attachment

ESTIMATED LEAD TIME: 6-8 WEEKS

DESCRIPTION:

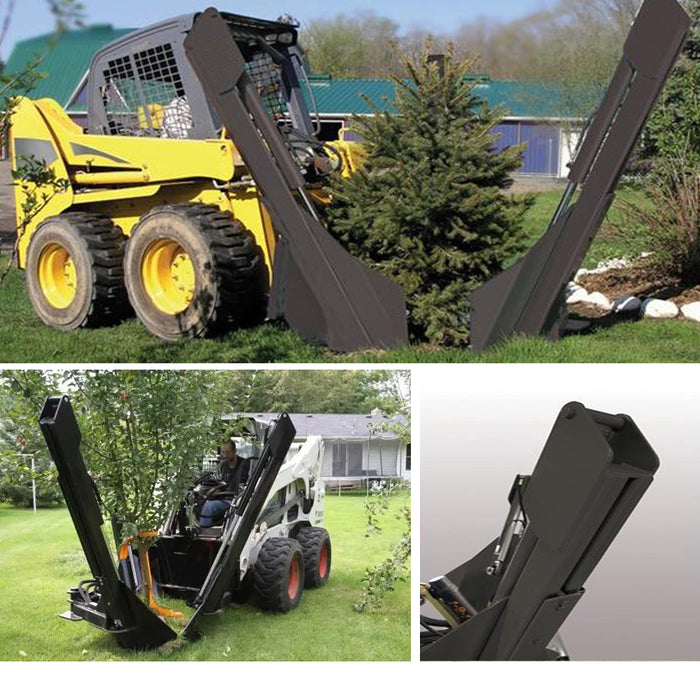

Turn your skid loader into a high-speed, labor-saving transplanting unit. A tree can be dug or transplanted without the operator having to leave the loader. Spade is designed with a very short frame reducing the need for stabilizers and counterweights. The blades of the tree spade overlap to ensure clean root cutting and support of the root ball.

FEATURES:

• Manufactured in the USA
• Tree Spade comes complete and ready to use, including all-hydraulic hoses, couplers, and controls
• Good for transplanting hardwood trees to 2 1/2” diameter and evergreens to 3”
• Three steel cutting blades are 3/8” thick
• Adjustable control valve stand
• All joints outfitted with grease fittings
• Removable blades for easy sharpening
• Short frame design for increased down-pressure reducing the need for rear stabilizers

SPECIFICATIONS:

• Tree Size (Evergreen):  3” (3 Blade)    4” (4 Blade)

• Tree Size (Hardwood):   2.5” (3 Blade)   3” (4 Blade)
• Root Ball Diameter:   30” (3 Blade)   40” (4 Blade)
• Root Ball Depth:   29” (3 Blade)   30” (4 Blade)
• Blade Angle:   25°
• Blade Thickness:   3/8” A36 Steel (3 Blade)   1/4” Grade 50 Steel (4 Blade)
• Slides: Steel
• Blade Truncation:   Semi (3 Blade)   Full (4 Blade)
• Outside Towers Swing Open:   Yes
• Operator Controls:   Hydraulic
• Hydraulic Flow Requirements:   5-25 GPM @ 2,500 psi
• Hydraulic Remotes:   1
• Weight with Root Ball:   2,000 lb. (3 Blade)   3,100 lb. (4 Blade)
• Width (Bottom / Top):   46” / 84” (3 Blade)   62” / 78” (4 Blade)
• Length (Bottom / Top):   52” / 76” (3 Blade)   61” / 76” (4 Blade)
