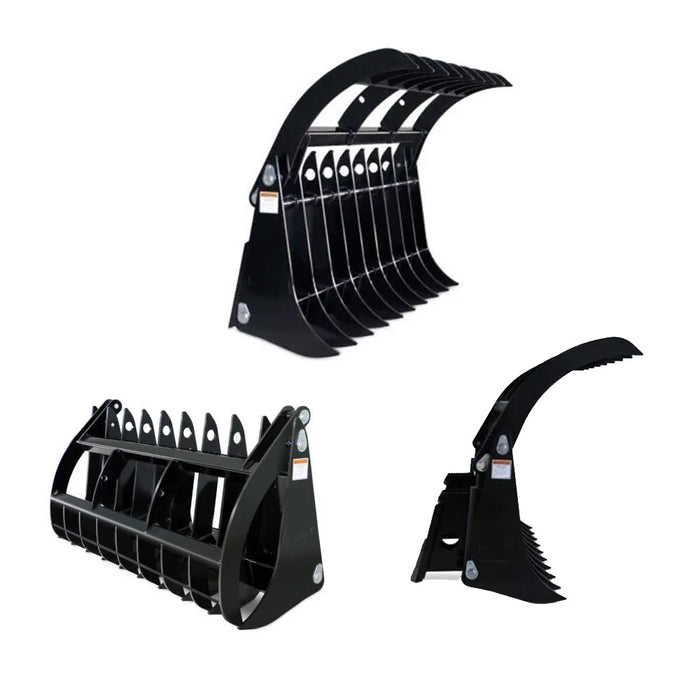

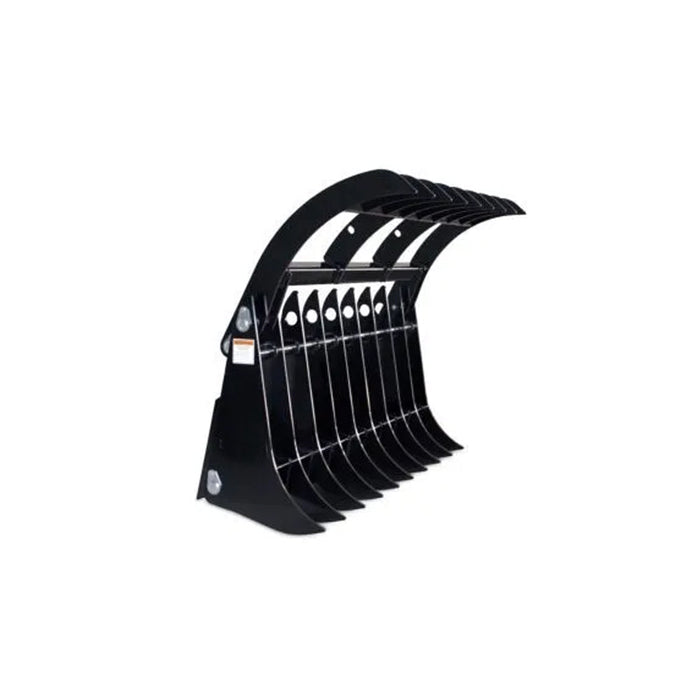

72" Triple S Power Industrial Grapple Rake Skid Steer Attachment

ESTIMATED LEAD TIME: 4-6 WEEKS

DESCRIPTION:

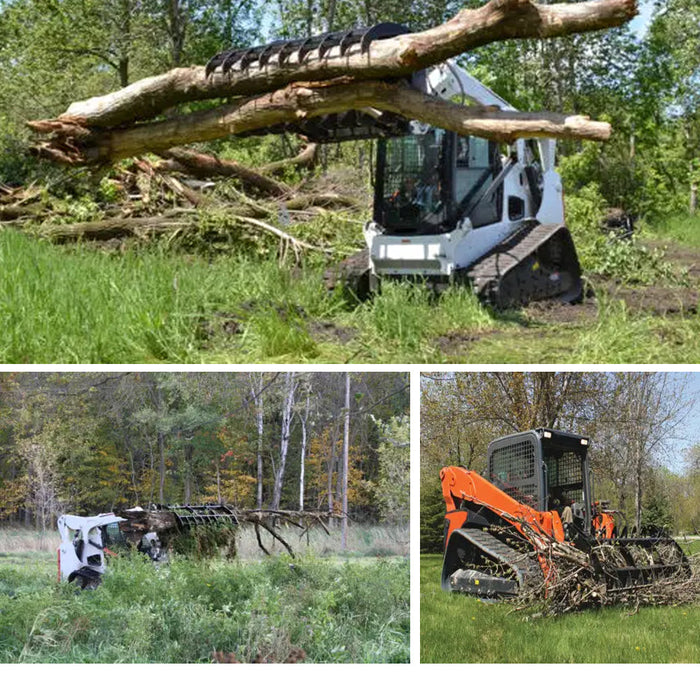

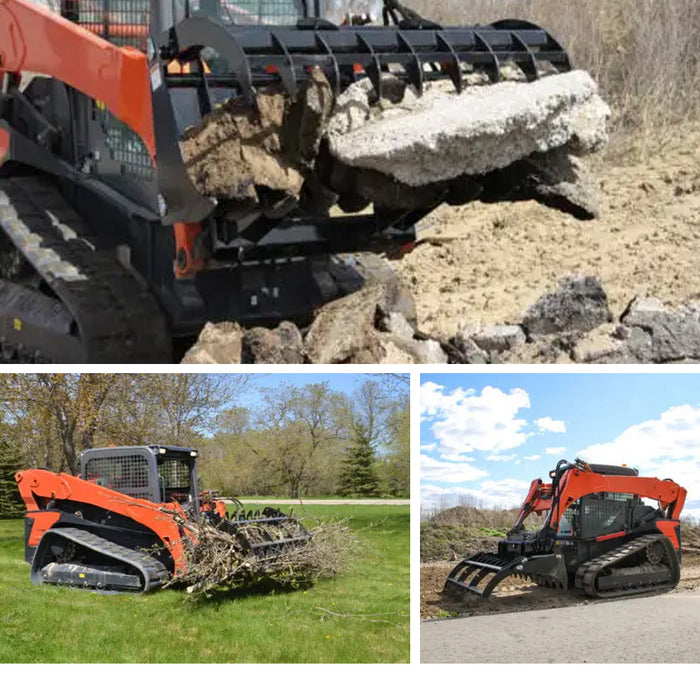

The most versatile tool in your attachment arsenal. The strength of the Grapple Rake allows you to pick up a variety of debris, from logs and brush to rocks and concrete. Quality T-1 steel used throughout gives you a grapple rake that withstands the toughest demands. The 48” opening and powerful jaws will close, clamp, and hold virtually anything.

FEATURES:

• Manufactured in the USA
• T-1 steel teeth nearly three times stronger than regular steel
• 2 – 3,000 lb. hydraulic cylinders
• Opens to 48”
• Curved teeth allow the grapple to glide over the ground, raking and cleaning the surface without damaging it
• Clear brush, pick rocks and mulch
• Raking and piling, storm cleanup, demolition
• Use as a root rake
• Grapple encloses entirely and secures debris
• Tubular steel construction provides extra strength and power

SPECIFICATIONS:

• Operating Weight:  815 lb.

• Overall Width:  73.25”
• Overall Depth:  33.6"
• Width Between Teeth (average):  7.5”
• Height with Teeth Closed:  37.6”
• Maximum Height with Teeth Open:  46.3”
• Maximum Opening:  48”
• Grapple Teeth (upper):  9
• Grapple Teeth (lower):  10
• Hydraulic Cylinders:  3" x 8" (2)
• Tooth Construction:  1/2” T-1
