Vac Force Maxi Portable Drill Press with Universal Adapter Options
ESTIMATED LEAD TIME: IN STOCK
DESCRIPTION:
Innovative, versatile, productive and lightweight drilling machine. Will adhere to any type of flat, clean surface. (THIN TO HEAVY SHEET METAL, STAINLESS STEEL,
BRASS, ALUMINIUM CHECKER PLATE, CONCRETE & TIMBER).

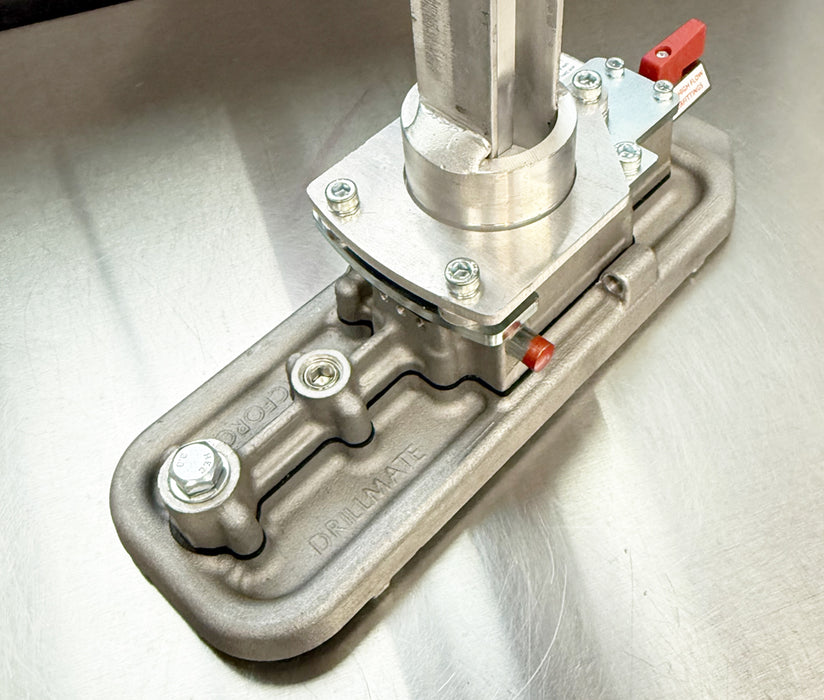

VACUUM BASE is supplied vacuum from an air generated venturi, giving the base 110kgs of holding power to a clean flat surface. It can be operated with a small compressor, providing it can supply 450kPa (65psi) pressure continuous, when operating with an electric or battery drill.
Maximum pressure of 60kgs can be applied to the surface being drilled.

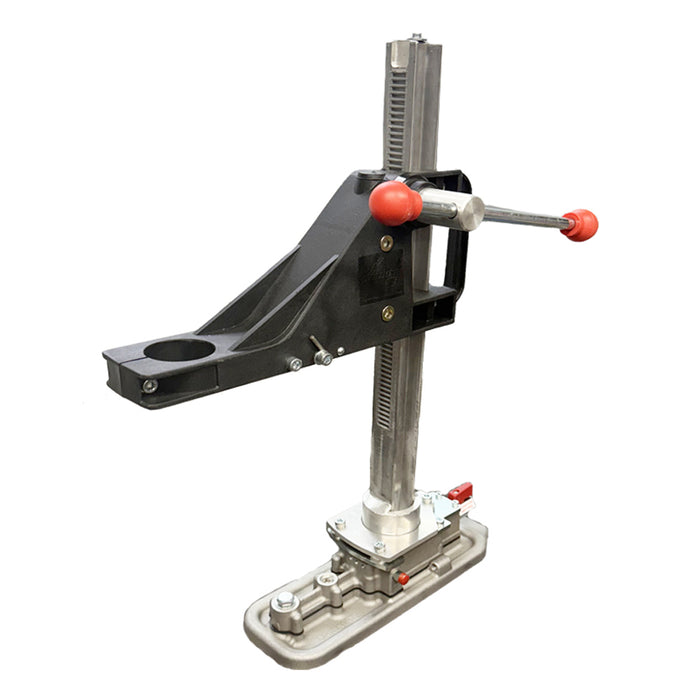

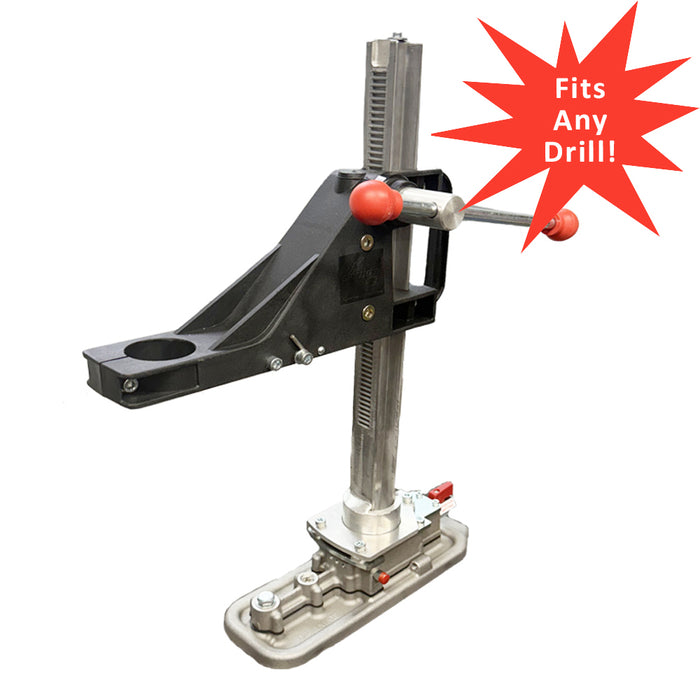

When operating with an air drill, the compressed air flow has to be of maximum pressure of 700kPa (100psi) and the base has a port available, controlled by a safety valve which only allows air to flow to the air drill when the base is firmly fixed to the surface to be drilled. Standard carriage configuration gives an operating travel of 280mm from base of chuck to surface and with the carriage inverted, it gives 380mm. Carriage is operated by a rack and pinion with 13:1 ratio.
The drilling mast is able to be moved left or right by 15° to get into difficult areas. With an air drill fitted – the unit can be used underwater.

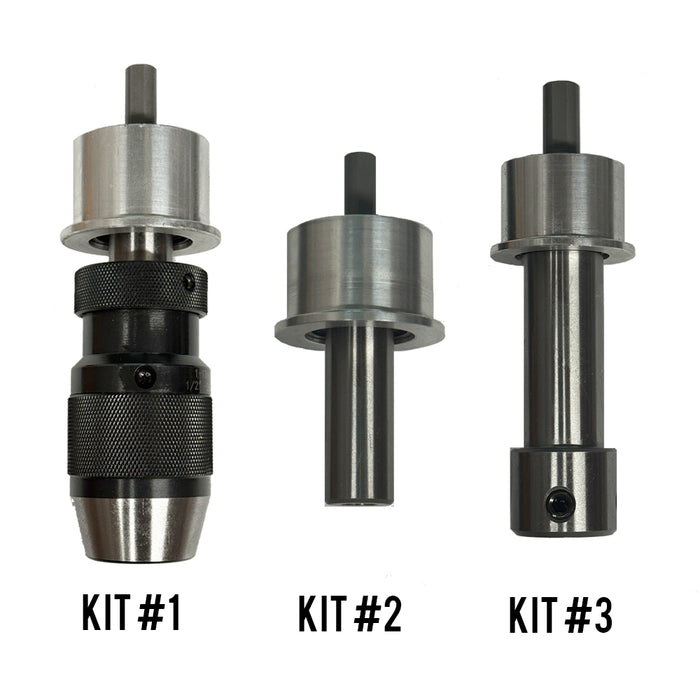

ADAPTER KIT OPTIONS:
FEATURES:

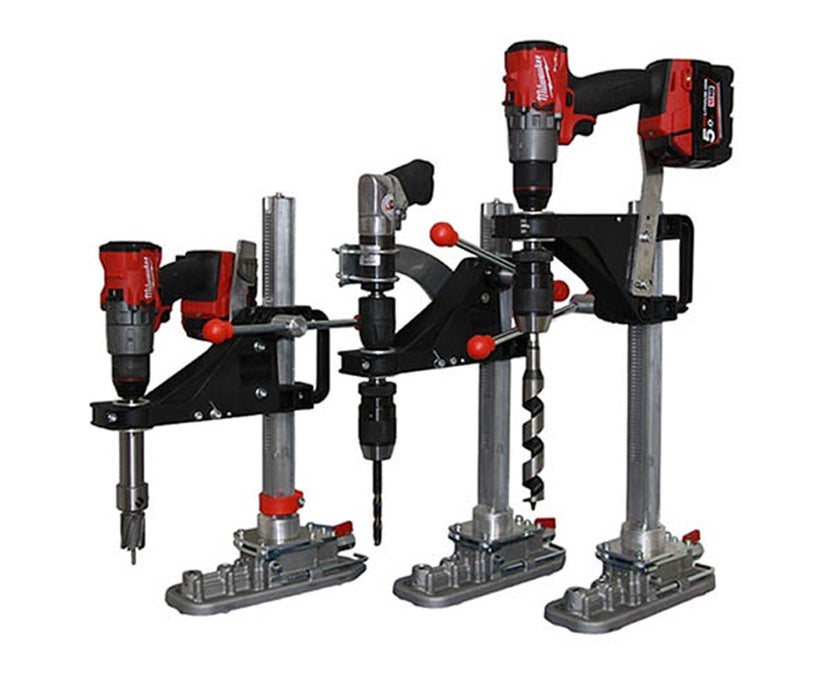

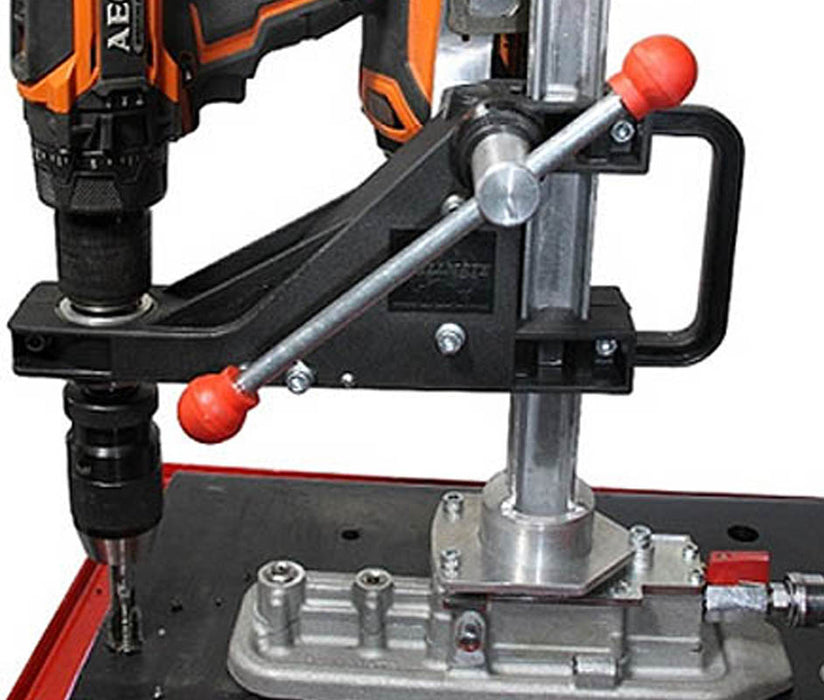

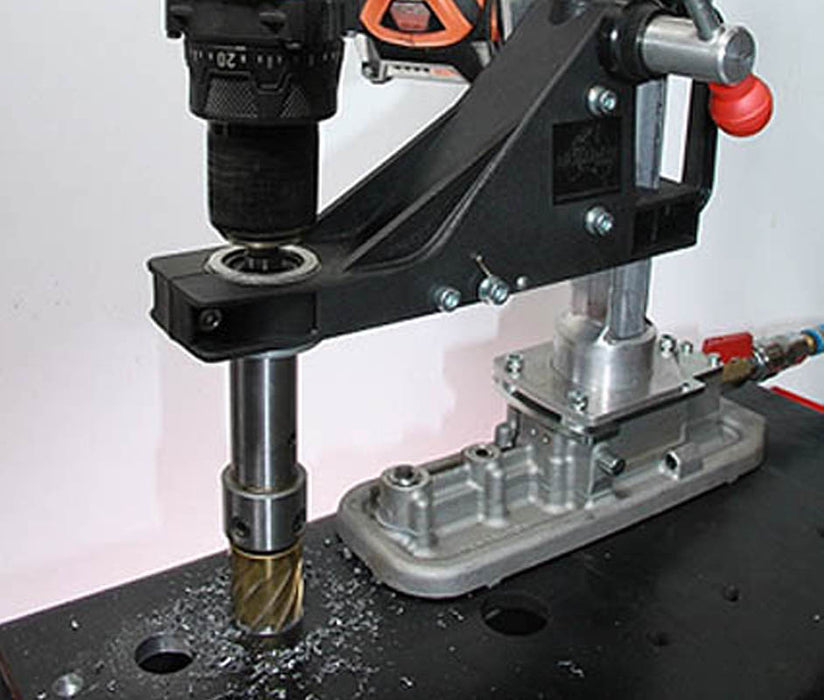

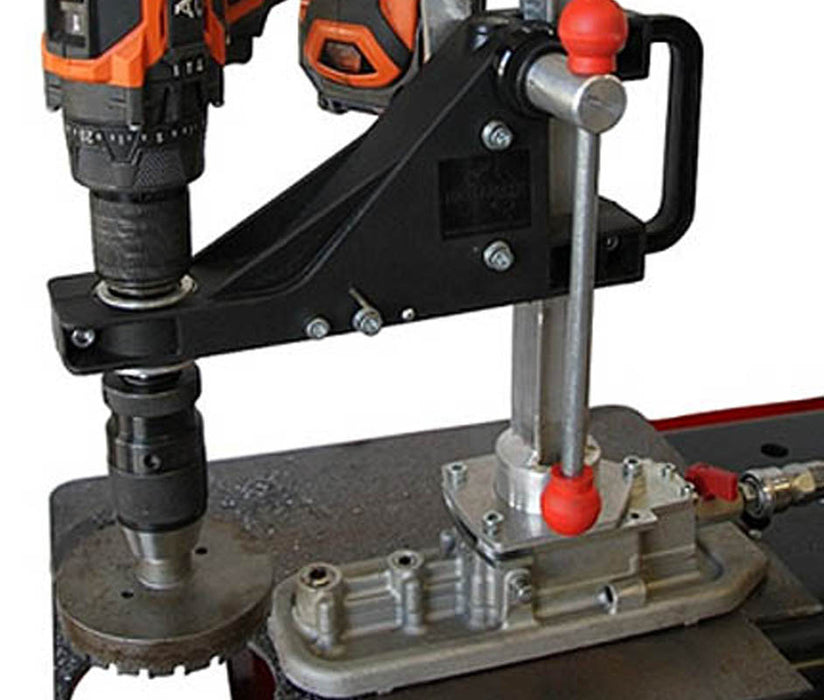

- The Vac Force Maxi can be used in several ways and now with the battery drill spindle kit attachments, makes it more portable and able to do larger holes.
- This unit has a holding power of 320kgs with air pressure supplied to the vacuum generator of 450kpa+
- Gives full stability due to the stabilizing feet incorporated and can lock on to checker plate, un-even surfaces (such as concrete so that core and hammer drills can be used)
-
With the new mounting for air drill attachment with “U” bolts, it is possible to fit larger air drill if required (for oil rig work).

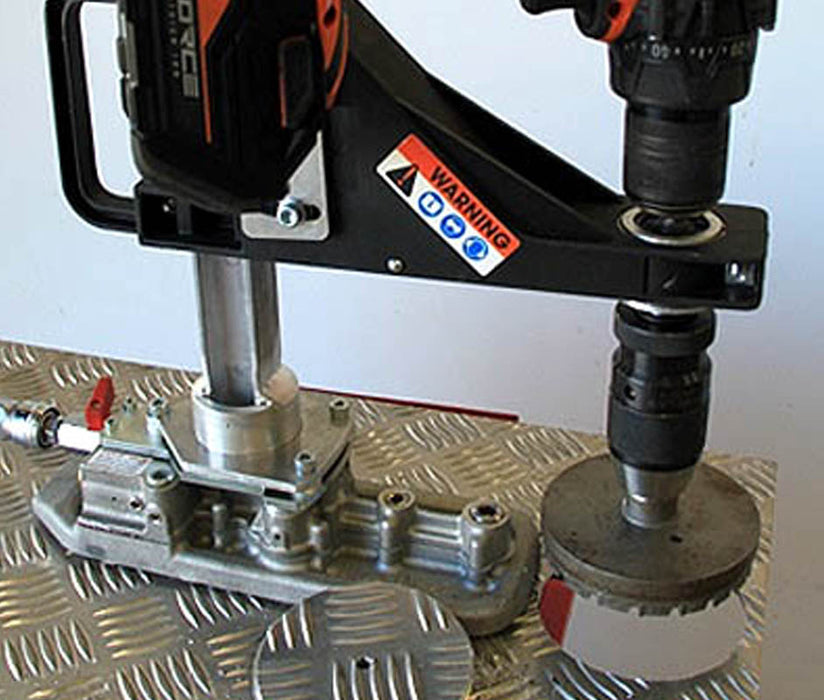

- Materials it can adhere to: Thin to heavy sheet metal, stainless steel, brass, aluminum checker plate, concrete and wood.
